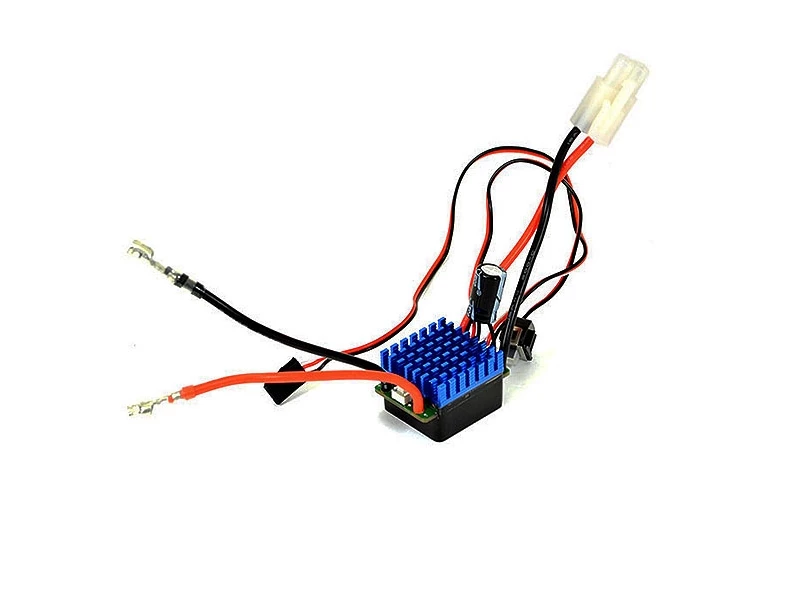

FTX 20A Waterproof ESC (Brushed)

FTX VANTAGE / CARNAGE / OUTLAW / BANZAI 20A ESC WATERPROOF BRUSHED



An affordable brushed ESC that is used in the FTX Vantage/Carnage/Outlaw and Banzai.

This ESC is setup in a simple way for ease of operation. When the ESC is switched on it automatically searches for the neutral point. When the automatic setup is finished the motor sends out “Do” “Re” “Me” indicating the neutral point is set and it is ready to be operated.

The ESC has 2 programmable running modes and a Low voltage protection mode that can be enabled for LiPo batteries.

FTX Vantage/Carnage/Outlaw/Banzai Brushed 20A WP ESC Features:

• Waterproof protection
• 5-6 cell NiMH compatibility
• 7.2-7.4V 2S Li-Po compatibility
• Li-Po Safety cut off when less than 6V
• Thermal Protection: When more than 90°C
• BEC Output: 5.6V 2A
• Small foot print for easy mounting
• Dimensions: 30mm x 28mm x 22mm
• Weight: 38g

Specification

Manufacturer	FTX
Part Number	FTX6557W
EAN	5055323982354
ESC Mode	Forward/Reverse
Battery Compatibility	NiMh
ESC Type	For Brushed Motors
Motor Connector Type	4mm Bullet Classic Crimp Terminal
Max Nimh Volt Rating	7.2v / 6 cell
Battery Connector Type	Tamiya Connector
Waterproofing	Waterproof
